Visual Fault Locator
NN-VFL-30-MW
Visual Fault Locator (VFL)
Short Description

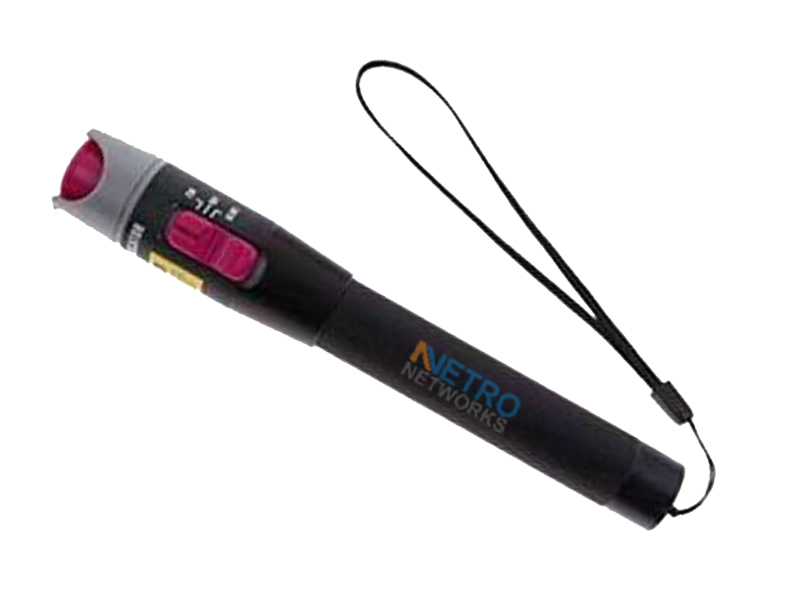

The NETRO Visual Fault Locator (VFL)
Red Light Pen
10MW Fiber Optic Cable Tester
- Maintenance in telecom, CATV
- Test Lab of optical fibers
- Fiber routing and continuity checking in optical networks
- Other fiber optic measurements
| Item | Description |
| Central wavelength | 650nm±10nm (635nm is available on request) |
| Emitter type | FP-LD |
| Output power | 5mw 10mw 20mw |
| Laser Range | ≥5km ≥10km ≥20km |
| Optical connector | 2.5mm universal connector, for 1.25mm connectors, FC (Male)-LC. |
| (Female) convertor can be provided on request | |
| Operating model | Both CW and Pulse available |
| Pulse frequency | 2Hz to 3Hz / 9Hz |
| Power supply | 2AAA alkaline batteries |
| Operating temperature | 20°C to 60°C |
| Storage temperature | -40°C to 85°C |
| Dimension | Ø13 x 181mm |
| Weight | 106g (without battery) |
- Made of metal to prevent loss during application
- Strong light source, strong penetrating power, outstanding stability
- Three-stage slide switch design, you can control the status of red light pen
- Suitable for SC/FC/ST interface to meet different requirements
- Replaceable ceramic die design extends the useful life of red light pens
