NN-CAT5e-SFTP-305mtr
NN-CAT5e-SFTP
CAT5e SFTP 305Mtr
Short Description

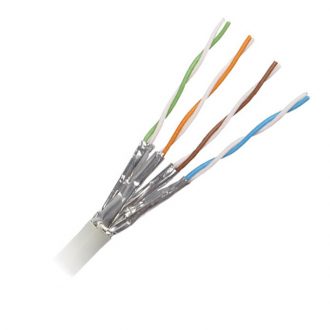

The NETRO CAT5e, 4 Pair, 0.40mm, SFTP, PVC, 305mtr, Copper Cable
Exceed ISO/IEC 11801, IEC 61156-5, ANSI/TIA/EIA-568-C.2 Class D Standards
Excellent Margin with suppression of Cross Talk (NEXT)
24AWG cable
Optionally Available in PE Jacket
The NETROs Cat5e SFTP Armoured cable offers superior protection against physical damage with Armouring and Electrical performance by blocking EMI interference through a Braid and Mylar tape construction meeting 1000 Base-T requirement for any applications that requires outdoor installation of the cable between buildings or any open area in a campus of building exposed to harsh environment
| Characteristic | Specifications |
| Conductor | Solid Bare Electrolytic Grade Copper |
| Nominal Conductor Diameter | 24 AWG 0.50 ± 0.015 mm |
| Insulation | Polyethylene (HDPE) or As per customer requirement |
| Pairing | Twisted into two core |
| No. of Pair | 4 Pair Twisted together |
| Shield | Al-Myler |
| Shield coverage | 100% |
| Shield Overlap | 25% |
| Drain Wire | ATC (or As per customer requirement) |
| Braiding | Alloy (or As per customer specification) |
| Plyester Tape | Yes (or As per customer specification) |
| Outer Sheath (As per Customer Required) | PVC Sheath (or As per customer specification) |
| Color of Sheath (As per Customer Required) | L-Grey, Black |
| UV Protection | Yes |
| Approximate OD | 6.50 ± 0.30 mm |
- 10 Base T 3
- 100 Base T IEEE802.3u
- 1000 Base T 3ab
- 1000 Base –BX10 3ah
- Meets IEEE802.3af and 802.3at PoE Applications supported include ANSI X3T9.5 100 Mbps TP-PMD standard under development, 100 Mbps TPDDI or CDDI (FDDI on UTP), As well as 16 Mbps Token Ring, and other high-speed LAN applications
