GPON-16 OLT
NN-GPON-16OLT
1U Pizza Type GPON OLT
Short Description
- GPON-16 PORT, OLT
- 16 *Downsteam GPON ports
- 4 * Uplink GE ETH ports
- 4* Uplink 10G SFP+ ports
- Up to 1:128 Split ratio
- Up to 2048 GPON users

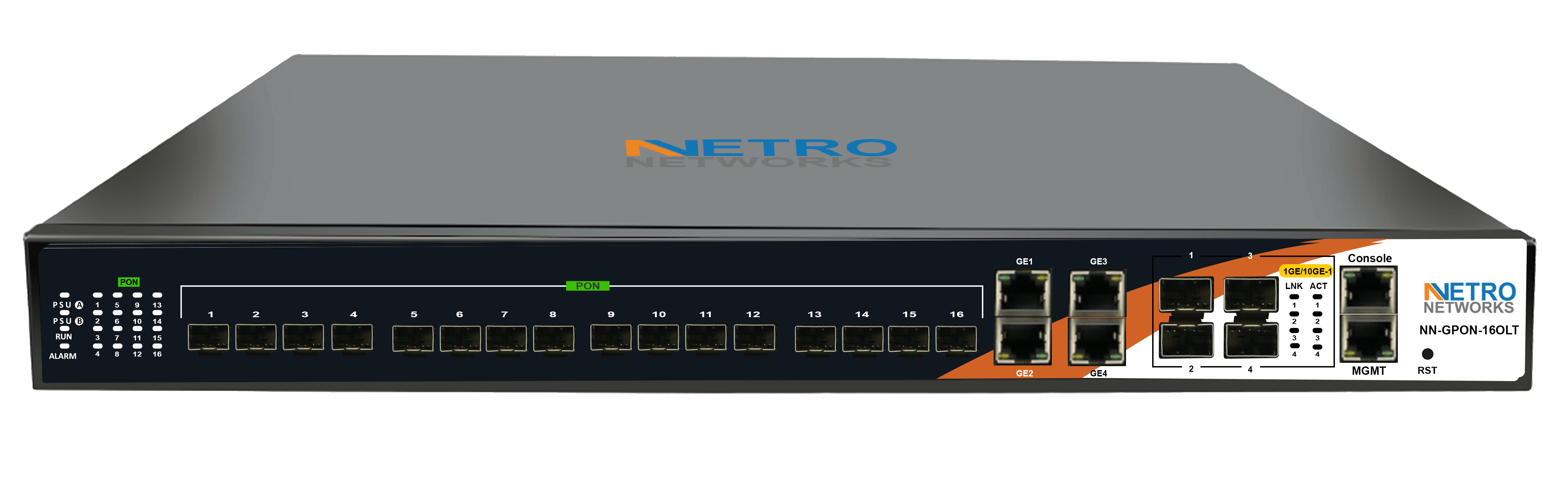

The NETRO NN-GPON-16OLT (Figure 1) is self-developed Compact 1U GPON OLT equipment, meeting the requirements of ITU-T G.984/G.988, possessing super GPON access capacity, carrier-class reliability and the complete security function. It can satisfy long-distance optical fiber access requirement on account of its excellent management, maintenance and monitoring capability, abundant service features and flexible network mode. NETRO NN-GPON-16OLT can be used with NGBNVIEW network management system so as to provide users with the perfect solution.
The NETRO NN-GPON-16OLT provides 16 *Downsteam GPON ports, 4 * Uplink GE ETH ports and 4* Uplink 10G SFP+ ports. Up to 1:128 Split ratio for up to 2048 GPON users. The 1U pizzabox design is for easy installation, Maintenance and Space saving. NETRO NN-GPON-16OLT is suitable for Broadcast three in one, video surveillance network,enterprise LAN, Internet of Things, etc.
| Network interface | |
| GPON interface | 16 x GPON (2.5/1.25 Gbps) |
| 10GE Ethernet | 2 x 10GE SFP + |
| 1GE Ethernet | 4 x RJ-45 |
| PON interface | |
| GPON | ITU-TG.984.x standard |
| Local Management interface | |
| Console | RJ-45 EIA/TIA-232 Console management port |
| MGMT | 100BASE-T out-band management port |
| Performance | |
| Switching Capacity | 205Gbps |
| Package transmit rate(IPv4/IPv6) | 125Mpps |
| Split ratio | 1:128 |
| Maximum ONU quantity | 4096 GEM port-ids, 1024 T-CONT, 128 ONT |
| Power Supply and Consumption | |
| Power Adaptor | AC Input::100 to 240 V AC, 50/60 Hz; DC Input : 36V-75V |
| Redundancy Design | Pluggable double power supply, double AC, double DC and AC+DC |
| Consumption | ＜85 W |
| Environmental conditions | |
| Storage | temperature -10 to 65°C, rel. humidity 10–90% (non-condensing) |
| Operation | temperature 0 to 45°C, rel. humidity 10–90% (non-condensing) |
| Physical specifications | |
| Dimensions | 442mm×400mm× 44mm(W * D *H) |
| Weight | ＜3 KG |
| Ethernet switching (L2) features | |
| VLAN | · support 4K VLAN |
| · support QinQ base on port or data flow | |
| · support VLAN addition，delete and transition | |
| Spanning tree | · support STP/RSTP/MSTP |
| · ONU remote loop detection | |
| Multicast | · support IGMPv1/v2/v3 |
| · support IGMP Snooping/Proxy | |
| · support IGMP filtering | |
| Port | · support bi-direction bandwidth control |
| · Port mirroring | |
| Service features | |
| Multicast | · support IGMPv1/v2/v3 |
| · support IGMP Snooping/Proxy | |
| · support IGMP filtering | |
| QoS | · support base on port or user-defined rate limitation |
| · support base on port or user-defined priority tag, provide 802.1P, DSCP tag ability of priority | |
| · support base on port or user-defined high grade queue scheduling | |
| · support Congestion avoidance system | |
| Security features | |
| · support Anti-ARP-spoofing deceive defend | |
| User security | · support Anti-ARP-flooding flooding attack automatic control |
| · support IP，MAC，port and VLAN binding | |
| · support port isolation | |
| · support Defend DOS attack | |
| · support user cascade protection, prevent unauthorized user forcible entry | |
| Device security | |
| · support IP address、VLAN ID、MAC address and port manual binding | |
| · support port broadcast /multibroadcast restrain | |
| · support base on source / destination MAC address,VLAN, 802.1p,ToS,DiffServ,source/destination IP(IPv4/IPv6) address,TCP/UDP port number protocol type of IP package flow classify and flow defined regulation management, support package header 80 byte depth L2-L7 ACLflow filtrate | |
| · support IP address、VLAN ID、MAC address and port manual binding | |
| · support port broadcast /multibroadcast restrain | |
| Network security | |
| Network management | · support command line interface (CLI) |
| · support SNMPv1/v2/v3 | |
| · support option82 support DHCP service, relay agent | |
| · support remote monitoring (RMON) | |
| · support port mirror | |
