Short Description

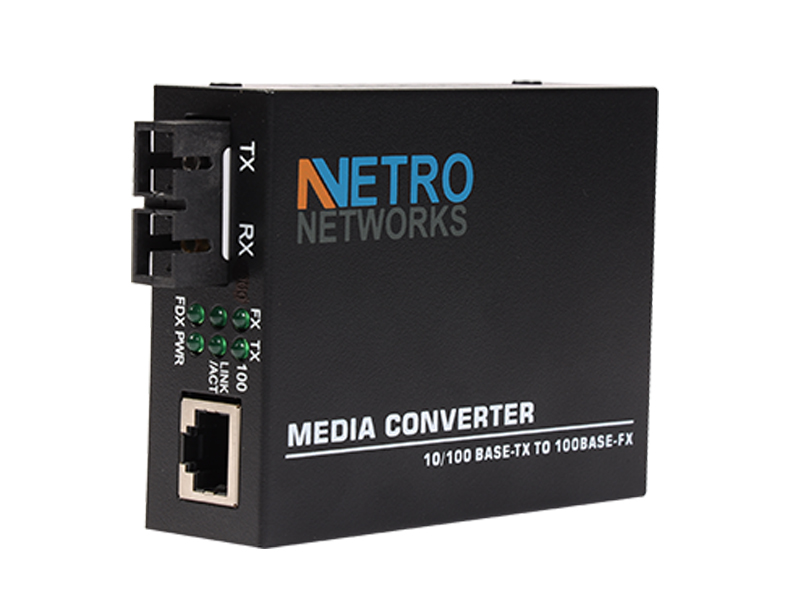

10/100M adaptive fast Ethernet optical media converter is a new product used for optical transmission via high-speed Ethernet. It is capable of switching between twisted pair and optical and relaying across 10/100 Base-TX and 100 Base-Fx network segments, meeting long-distance, high-speed and high- broadband fast Ethernet workgroup users’ needs, achieving high-speed remote interconnection for up to 120 km's relay-free computer data network. We can offer dual fibr multi-mode as well single fiber single-mode.
Technical Parameters for 10/100M Adaptive Fast Ethernet Optical Media Converter | |
Number of Network Ports | 1 Channel |
Number of Optical Ports | 1 Channel |
NIC Transmission Rate | 10/100Mbit/s |
NIC Transmission Mode | 10/100M adaptive with support for automatic inversion of MDI/MDIX |
Optical Port Transmission Rate | 100Mbit/s |
Operating Voltage | AC 220V or DC +5V |
Overall Power | <1W |
Network Ports | RJ45 Port |
Optical Specification | Optical Port: SC |
Multi-Mode: 50/125, 62.5/125um | |
Single-Mode: 8.3/125, 8.7/125um, 8/125,10/125um | |
Data Channel | IEEE802.3x and collision base backpressure supported |
Working Mode: Full/half duplex supported | |
Transmission Rate: 100Mbit/s | |
with error rate of zero |
With steady and reliable performance, design in accordance with Ethernet standard and lightning protection, it is particularly applicable to a wide range of fields requiring a variety of broadband data networks and high-reliability data transmission or dedicated IP data transfer networks, such as telecommunication, cable television, railway, military, finance and securities, customs, civil aviation, shipping, power, water conservancy, and oilfield, etc, and is an ideal type of facility to build broadband campus network, cable TV and intelligent broadband FTTB/FTTH networks.
