GPON SFP

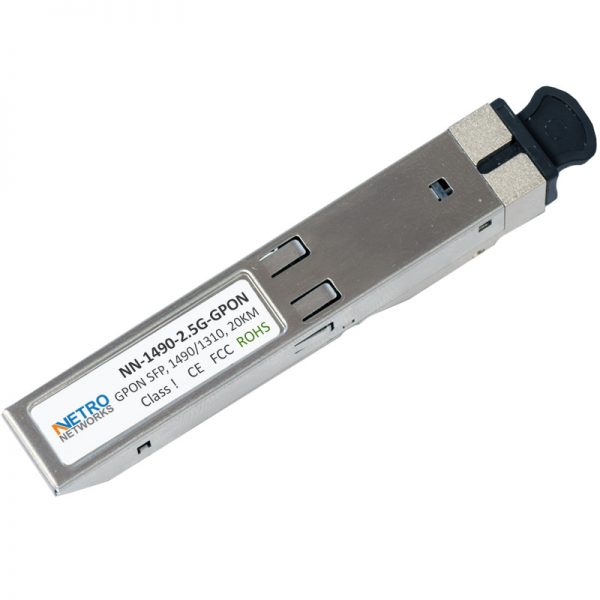

NN-1490-2.5G-GPON : SFP Module, GPON SFP, 1490/1310, 20KM

SKU: NN-1490-2.5G-GPON Categories: ,

Description

Features:

  • Single fiber bi-directional data links asymmetric TX 2488Mbps/ RX1244Mbps application
  • 1490nm continuous-mode DFB laser transmitter and 1310nm burst-mode APD-TIA receiver
  • Small Form Factor Pluggable package with SC/UPC Connector
  • 0 to 70°C operating temperature
  • Single 3.3V power supply
  • Digital diagnostic monitoring interface
  • Digital burst RSSI function to monitor the input optical power level
  • LVPECL compatible data input/output interface
  • LVTTL transmitter disable control
  • LVTTL transmitter laser fault alarm
  • Fast LVTTL receiver Signal Detect (SD) indication response
  • Low EMI and excellent ESD protection
  • Class I laser safety standard IEC-60825 compliant
  • RoHS6 Compliance

Application :

Gigabit-capable Passive Optical Networks (GPON)

Standards:

  • Complies with SFP Multi-Source Agreement (MSA) SFF-8074i
  • Complies with ITU-T G.984.2 Amendment 1
  • Complies with FCC 47 CFR Part 15, Class B
  • Complies with FDA 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007
  • Complies with SFF-8472
  • Compatible with TR-NWT-000870 4.1 ESD sensitivity classification Class2.
  • Compatible with Telcordia GR-468-CORE

Additional information

Brand

Netro Networks

NN-1490-2.5G-GPON

Download(784 KB)

Click here to download NN-1490-2.5G-GPON datasheet
