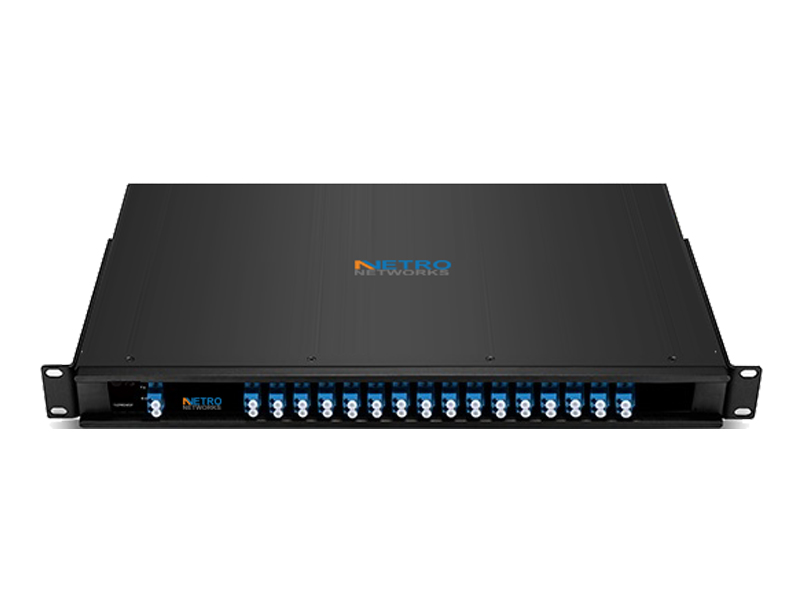

NN-DWDM-2742C-16R
NN-DWDM-2742C-16R
DWDM-Mux-DeMux 16CH, Rackmount, LC/PC
Short Description
NETRO NN-DWDM-2742C-16R multi-channel multiplexer / demultiplexer (Mux / DeMux）modules are available on ITU channel spacing of 100GHz. They demonstrate low loss, temperature insensitivity and reliable performance in any system application. Fixed Mux/ DeMux modules offer low-cost wavelength management solutions that are suitable for long haul, metro, and access application.
NETRO NN-DWDM-2742C-16R multi-channel multiplexer / demultiplexer (Mux / DeMux）modules are available on ITU channel spacing of 100GHz. They demonstrate low loss, temperature insensitivity and reliable performance in any system application. Fixed Mux/ DeMux modules offer low-cost wavelength management solutions that are suitable for long haul, metro, and access application.
Item | Unit | Parameters |
Channel Spacing | GHz | 100GHz |
Wavelength Range |
| C- band ITU channels |
Channel Centers | nm | ITU |
Channels | ch | 16 |
Passband Width | nm | ≥ +/- 0.13 |
Passband Ripple | dB | ≤ 0.5 |
Channel Insertion Loss | dB | ≤4.8 |
Isolation (adjacent channel) | dB | ≥30 |
Isolation (non-adjacent channel) | dB | ≥40 |
Polarization Dependent Loss | dB | ≤ 0.2 |
Polarization Mode Dispersion | Ps | ≤ 0.2 |
Directivity | dB | ≥ 50 |
Return Loss | dB | ≥ 45 |
Optical Power Handling | mW | ≤ 500 |
Operating Temperature Range | 0C | -20 to 75 |
Storage Temperature Range | 0C | -40 to +85 |
Fiber Type | NA | SMF-28e+ |
Connector |
| LC/SC or other |
- Low Insertion Loss
- High Isolation
- Low PDL
- Compact Design
- Good channel-to-channel uniformity Dual fiber application
- Wide Operating Wavelength
- Wide Operating Temperature: -20 to 75o
Application:
- DWDM System
- PON Networks
- CATV Links
- Fiber optical amplifier
- Wavelength routing
