NNA-10G SFP+ AOC
NN-SFP+ 10G AOC

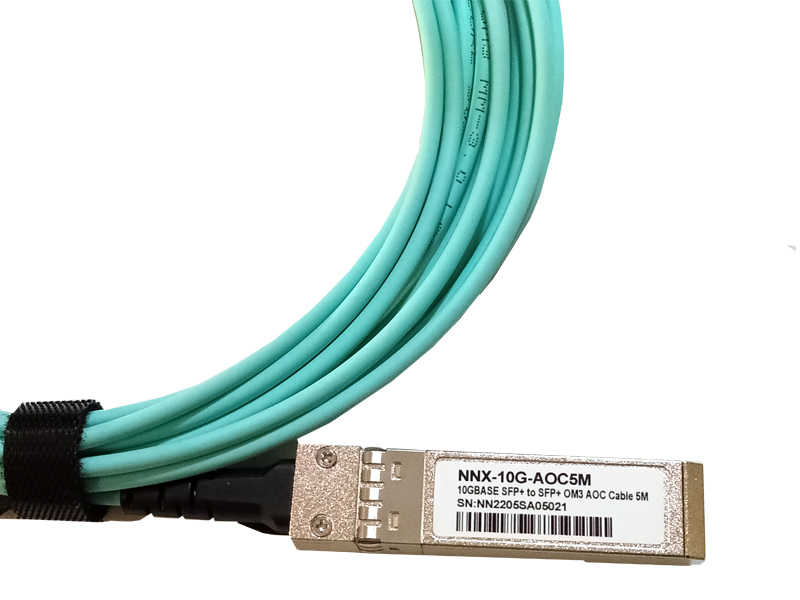

10G SFP+ Active Optical Cable (AOC)
Short Description
Application:
- Datacom
- 10G Ethernet
- Other high-throughput data transmission network
Standard:
- Compliant with SFF-8431 and SFF-8432
- Compliant with SFF-8472 Rev 2
- Compliant with IEEE 3ae 10GBASE-LR and 10GBASE-LW
- RoHS Compliant
The NETRO's NNA-10G-3M SFP+ Active Optical Cable (AOC) is a 10Gbps solution to 10G Ethernet, and datacenter. The integrated cable transmits 10Gbps data in each direction over MMF with distance up to 100m. The AOC is SFP+ MSA compliance, low power consumption and lightweight.
Absolute maximum ratings:
Parameter | Symbol | Min | Max | Unit |
Storage Temperature | Ts | -20 | 85 | oC |
Relative Humidity | RH | 5 | 95 | % |
Supply Voltage | Vcc | -0.3 | 3.6 | V |
Supply Current | Icc |
| 450 | mA |
Recommended Operating Conditions:
Parameter | Symbol | Min | Typical | Max | Unit |
Operating Case Temperature | Standard Tc | 0 | 25 | 70 | °C |
Power Supply Voltage | Vcc | 3.13 | 3.30 | 3.47 | V |
Power Supply Current | Icc |
| 60 | 260 | mA |
Power Dissipation | PD |
| 600 | 800 | mW |
Data Rate | DR |
| 10.3125 |
| Gbps |
Transmission Distance | TD |
|
| 100 | m |
Transmitter Specifications (Optical):
Parameter | Symbol | Min. | Typ. | Max. | Unit | Note |
Average Output Power | Po | -5 |
| -1 | dBm |
|
Disable Power | Poff |
|
| -40 | dBm |
|
Extinction Ratio | ER | 3.5 |
|
| dB |
|
Output Centre Wavelength | λc | 840 |
| 860 | nm |
|
Transmitter Specifications (Electrical):
Parameter | Symbol | Min | Typical | Max | Unit | |
Data Input Swing Differential | VIN | 200 |
| 700 | mV | |
Input Differential Impedance | ZIN | 90 | 100 | 110 | Ω | |
Transmit Disable Input | High | VIH | 2.0 |
| Vcc+0.3 | V |
Low | VIL | 0 |
| 0.8 | V | |
Receiver Specification (Optical):
Parameter | Symbol | Min | Typical | Max | Unit | note |
Centre Wavelength | λc | 840 | 850 | 860 | nm |
|
Receiver Sensitivity | Sen |
|
| -11 | dBm | 1 |
Receiver Overload | Psat | 0.5 |
|
| dBm | 1 |
LOS De-Assert | LOSD |
|
| -15 | dBm |
|
LOS Assert | LOSA | -30 |
|
| dBm |
|
LOS Hysteresis |
| 0.5 |
| 4 | dB |
|
Receiver Reflectance | Rrx |
|
| -12 | dB |
|
Note :1. Measured at BER 10-12, 10.3Gbps, PRBS2^31-1, NRZ
Receiver Specification (Electrical):
Parameter | Symbol | Min | Typical | Max | Unit | note |
Data Output Swing Differential | Vout | 300 |
| 800 | mV |
|
Rx-Los Fault | Vlf | 2.0 |
| VccHOST | V |
|
Rx-Los Normal | Vln | 0 |
| 0+0.8 | V |
|
Output rise and fall time | Tr, Tf | 28 |
|
| ps |
|
Diagnostics Specification:
Parameter | Range | Unit | Accuracy | Calibration |
Temperature | 0 to 70 | ℃ | ±3℃ | Internal / External |
Voltage | 3.0 to 3.6 | V | ±3% | Internal / External |
Bias Current | 0 to 100 | mA | ±10% | Internal / External |
TX Power | -5 to -1 | dBm | ±3dB | Internal / External |
RX Power | -30 to 0 | dBm | ±3dB | Internal / External |
Features:
- 10Gb/s active optical cable up to 100m OM2 MMF
- 850nm VCSEL and PIN receiver
- Single 3V power supply
- Operating Case Temperature: -5~75℃
- Hot pluggable
- Low Power Consumption
- Light weight
- Small Bend Radius
- Digital Diagnostic Monitor(DDM)
- All-metal Housing for Superior EMI Performance
